Standard Blocks

PC Inputs

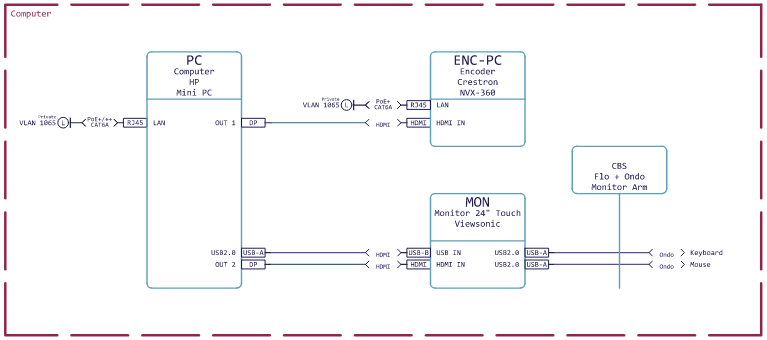

Standard PC

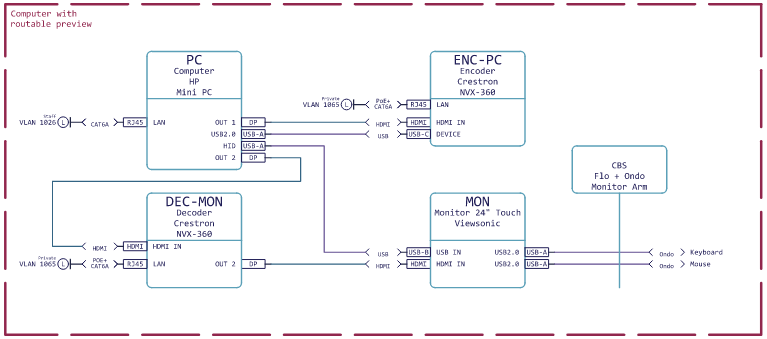

Standard PC with Routable Monitor

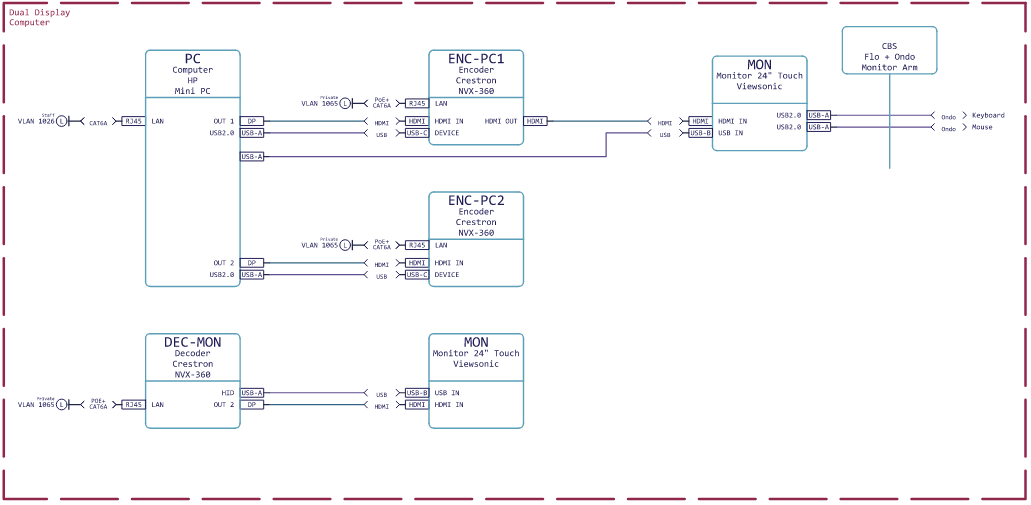

Dual-Output PC

In dual output scenarios, each student must be able to see both screens in a similar arrangement (ie all displays in room should be side-by-side)

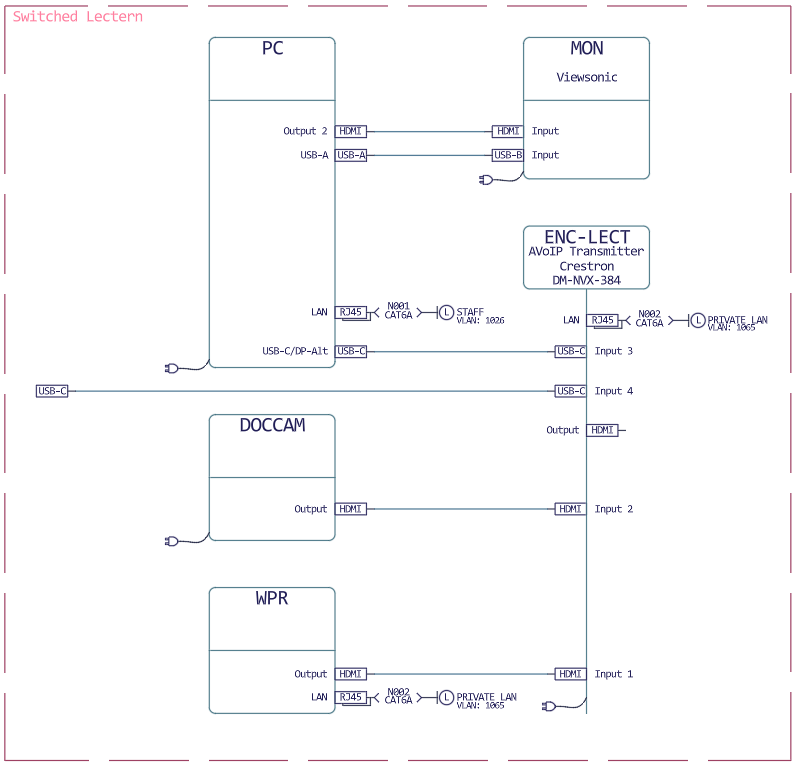

trial Switched IO PC/WPR/Doccam/Laptop

Designed for use in Single Destination rooms only, and reduces data count by 3

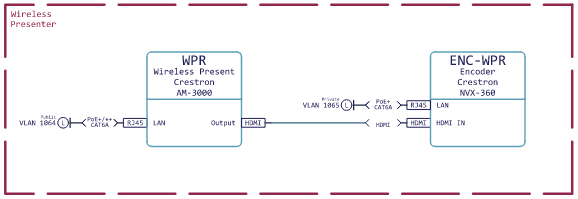

Wireless Presentation

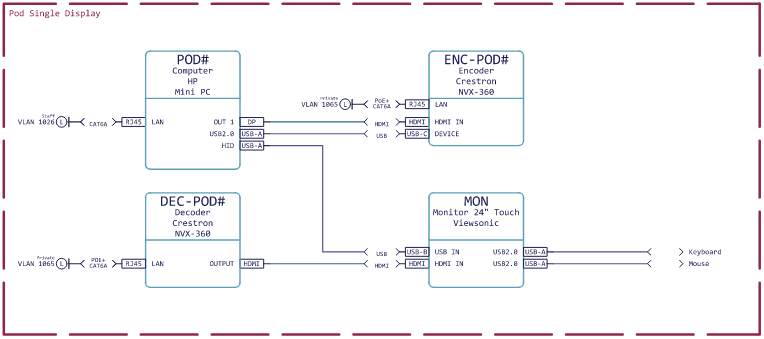

Pod Single Display

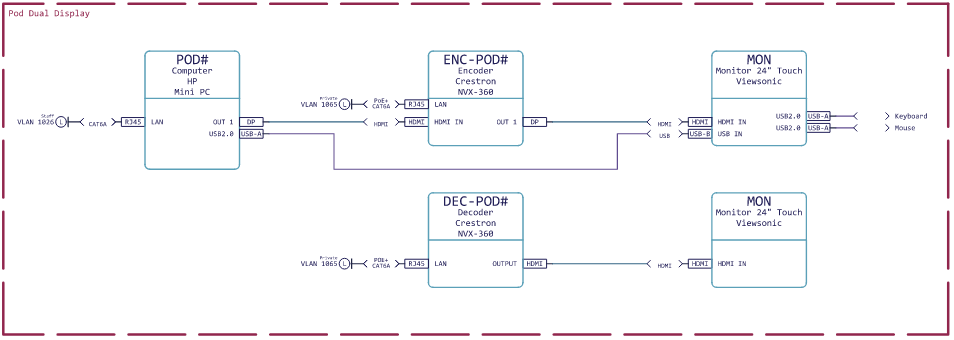

Pod Dual Display

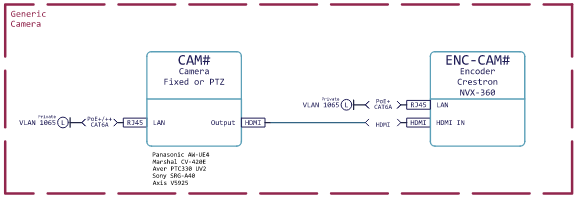

Cameras

Support Camera

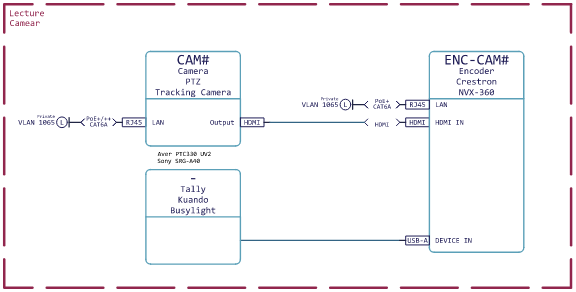

Lecture Camera

Audience or Auxillary Camera

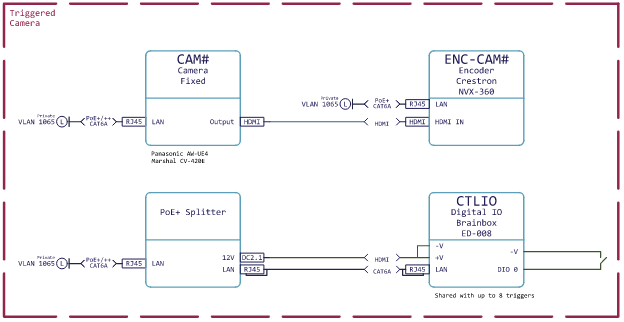

Button Triggered Camera

Typically for Whiteboard capture or Overhead cameras over a fixed region which may or may not be proximal to the touch panel.

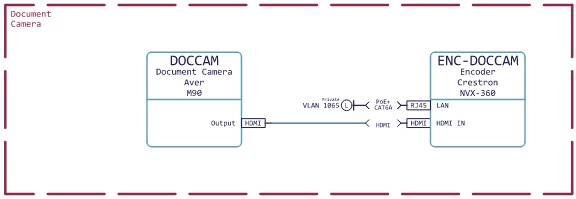

Document Camera

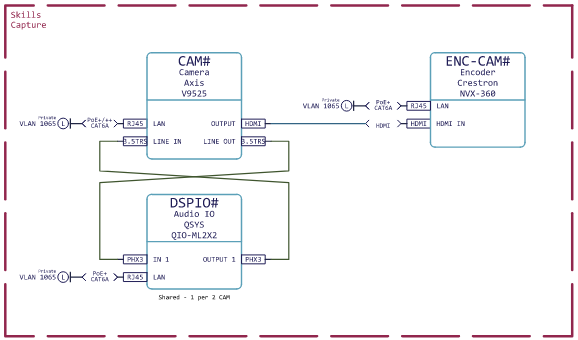

Skills Capture Camera

Skills cameras integrate with Axis Camera Station and have embeded audio as well as talk-back via ACS

Display Outputs

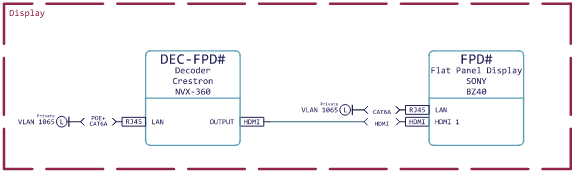

Flat Panel Display

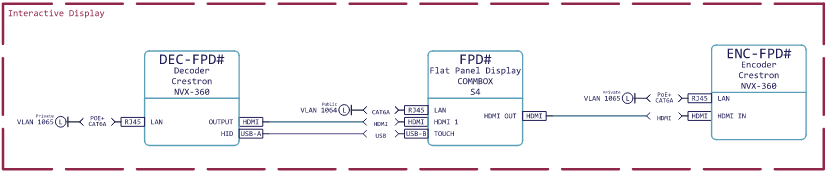

Interactive Flat Panel

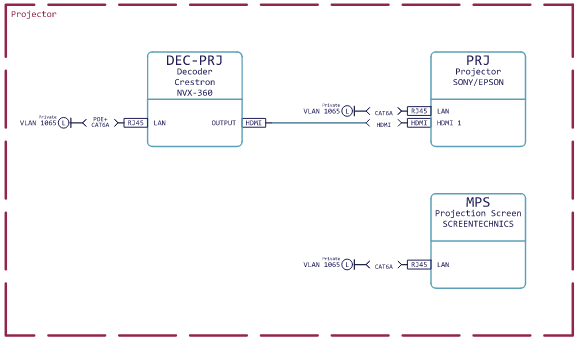

Projection

Projection only by approval from DTS

Audio

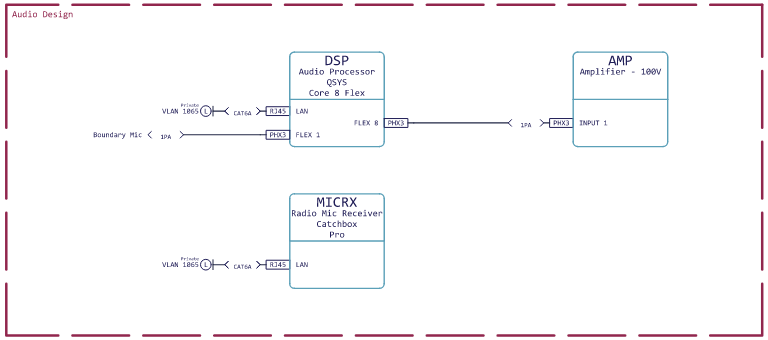

Standard Audio Core

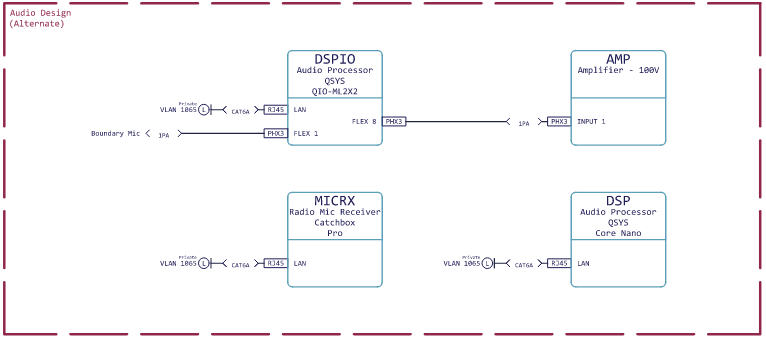

Alternate Audio Core

Utilised in cases where local-io cores have not been available.

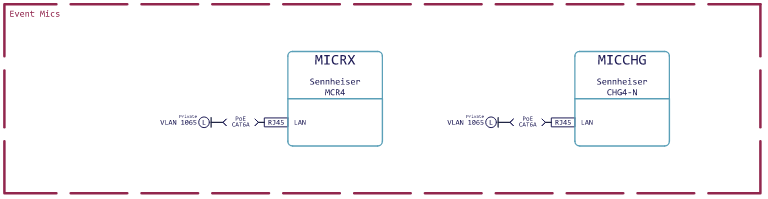

Event Microphones

Primarily used in lecture theatres - but also in some older installations.

Conferencing and Recording

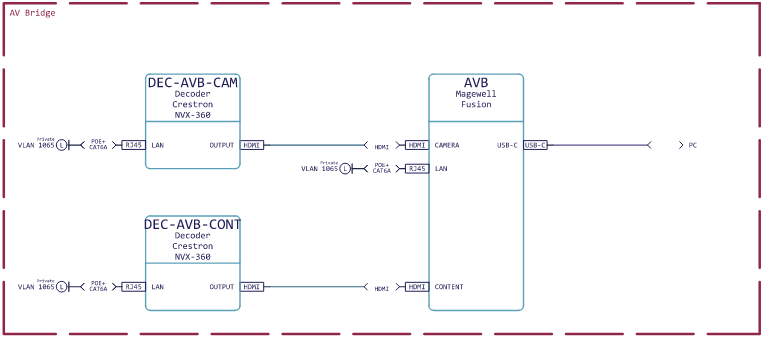

AV Bridge

In some configurations this may be value engineerd to be single input only. Alternate AV Bridge - The Magewell USBPro 4k is being investigated as an alternate option.

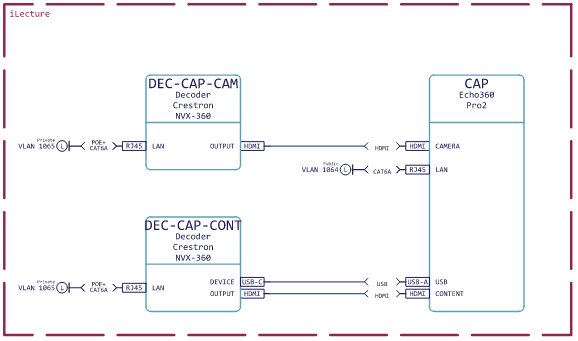

iLecture Recording (Echo360)

Other

Touchpanel

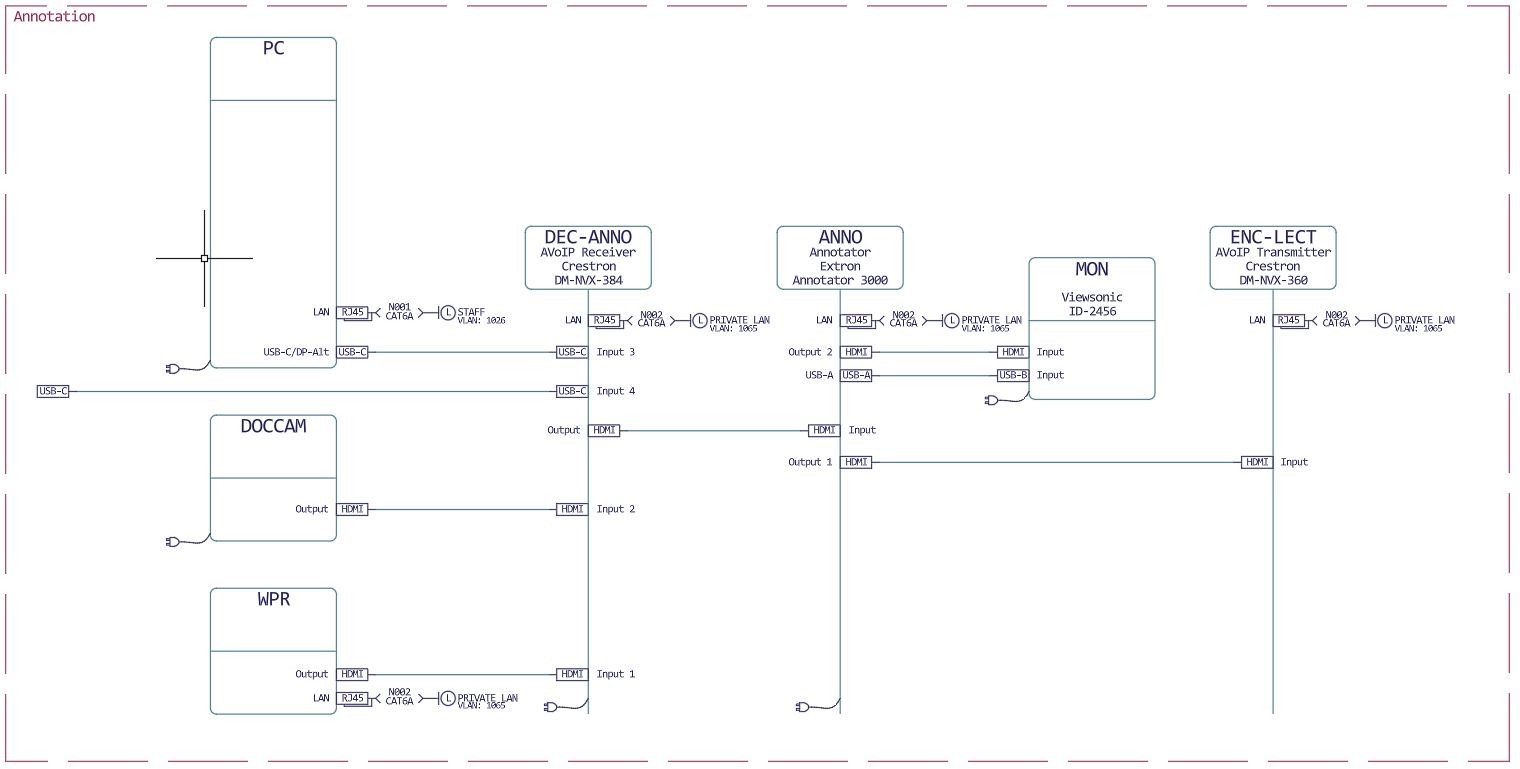

Annotation

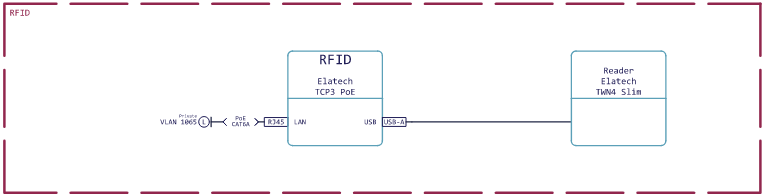

RFID

Room Booking Panel

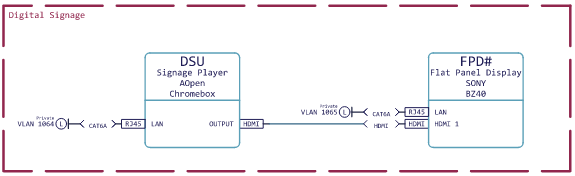

Digital Signage

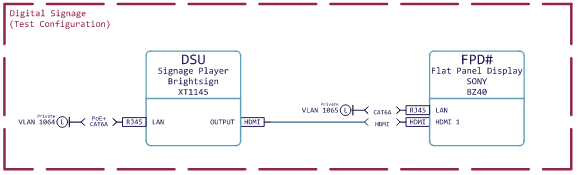

Digital Signage (Alternative)
